MPQ7200-AEC1
正在供货产品型号
MPQ7200GLE-AEC1-P MPQ7200GLE-AEC1-Z
P&Z的含义
相关产品
EVQ7200-L-00A 42V, 3A Synchronous, Buck Mode LED Driver Evaluation Board
The EVQ7200-L-00A is an evaluation board for the MPQ7200-AEC1, a high-frequency, constant-current LED driver with integrated power MOSFETs. It offers a compact solution to achieve 3A of continuous output current, with excellent load and line regulation over a wide input supply range.
Constant frequency hysteretic control mode provides fast transient response without loop compensation. In buck mode, the MPQ7200-AEC1’s switching frequency (up to 2.3MHz) reduces ripple current and electromagnetic interference (EMI).

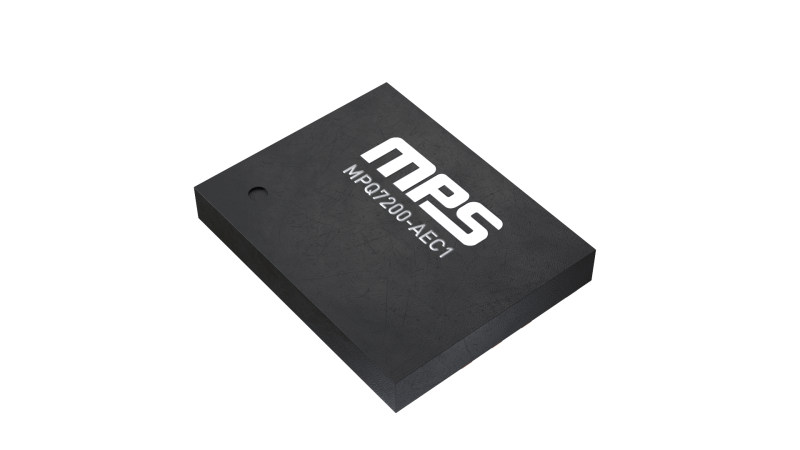

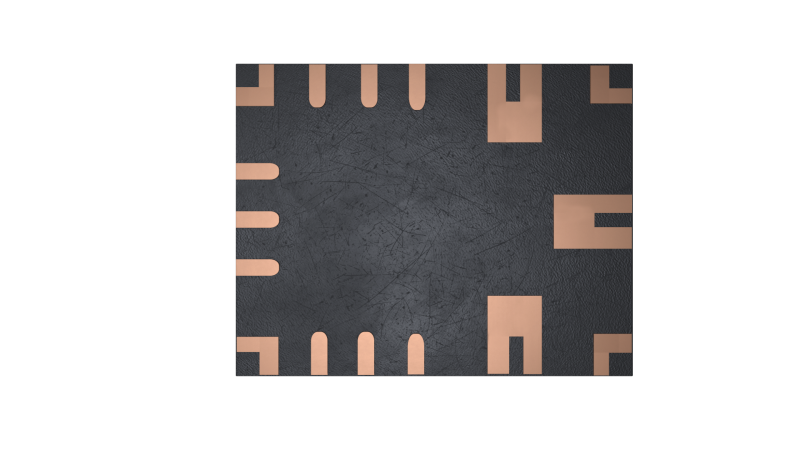

The MPQ7200-AEC1 is available in a QFN-19 (3mmx4mm) wettable flank package and is AEC-Q100 Grade 1 qualified.
The EVQ7200-L-00A is a fully assembled and tested buck mode LED driver evaluation board. It generates an LED current up to 3A from a 6V to 42V input range.
42V、1.2A、升降压(Buck-Boost)同步 LED 驱动器评估板,符合 AEC-Q100 认证
