5V to 60V, Three-Phase, Brushless DC Motor Pre-Driver, AEC-Q100 Qualified

详情

The MPQ6530-AEC1 is a gate driver IC designed for three-phase, brushless DC (BLDC) motor driver applications. It features three half-bridges that consist of six N-channel power MOSFETs, with each of them capable of driving up to 60V.

The MPQ6530-AEC1 integrates a regulated charge pump to generate gate drive power, and uses a bootstrap (BST) capacitor (C_BST) to generate a supply voltage for the high-side MOSFET (HS-FET) driver. An internal trickle-charge circuit maintains a sufficient HS-FET driver voltage, even when the output is at 100% duty cycle.

Internal safety features include configurable short-circuit protection (SCP), over-current protection (OCP), adjustable dead-time (DT) control, under-voltage lockout (UVLO), and thermal shutdown.

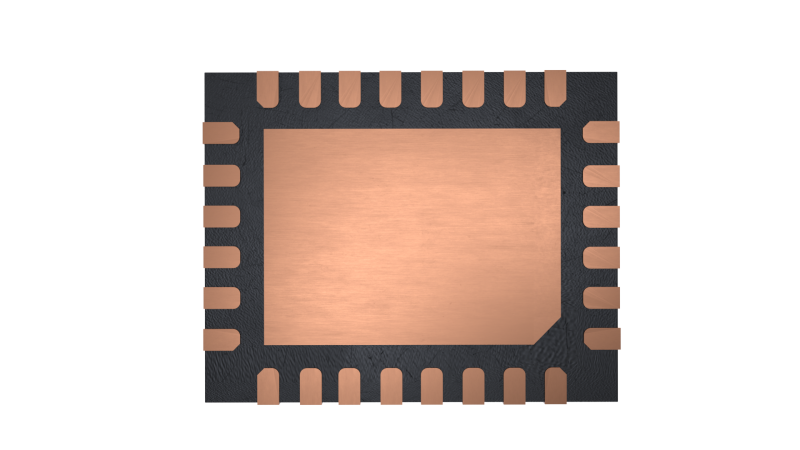

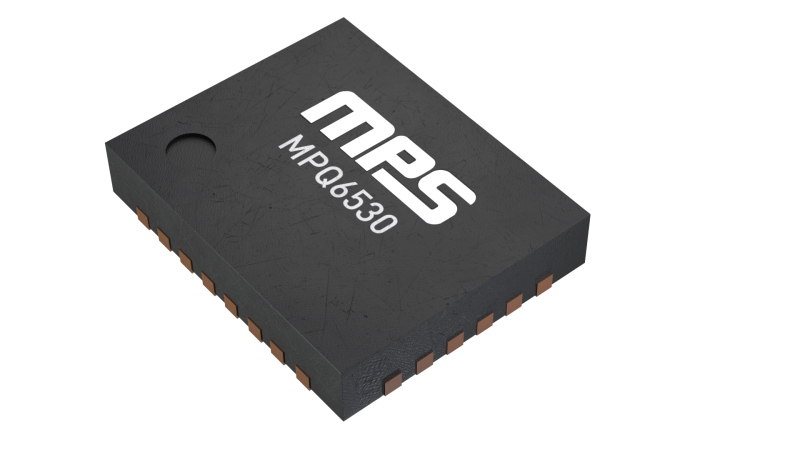

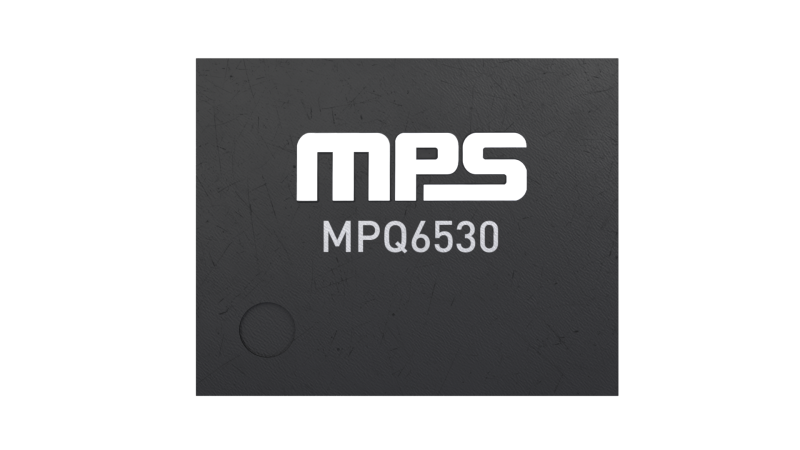

The MPQ6530-AEC1 is available in a QFN-28 (4mmx5mm) package with wettable flanks and an exposed thermal pad on the back. It is available in AEC-Q100 Grade 1.

产品特性和优势

Charge Pump Gate Drive Supply
Bootstrap (BST) High-Side MOSFET (HS-FET) Driver with Trickle-Charge Circuit to Support 100% Duty Cycle Operation
Low-Power Sleep Mode
Configurable Short-Circuit Protection (SCP)
Over-Current Protection (OCP)
Adjustable Dead-Time (DT) Control to Prevent Shoot-Through
Thermal Shutdown
Under-Voltage Lockout (UVLO) Protection
Fault Indication Output
Thermally Enhanced Surface-Mount Package
Available in a QFN-28 (4mmx5mm) Package
Available in AEC-Q100 Grade 1
