5.5V, 6A, Synchronous Step-Down Converter with FCCM in an LGA-9 Package

详情

The MP1608L is a monolithic, step-down, switch-mode converter with built-in internal power MOSFETs. It achieves up to 6A of continuous output current (I_OUT) from a 2.7V to 5.5V input voltage (V_IN) range, with excellent load and line regulation. The output voltage (V_OUT) can be regulated to as low as 0.4V.

The constant-on-time (COT) control scheme provides fast transient response and eases loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown.

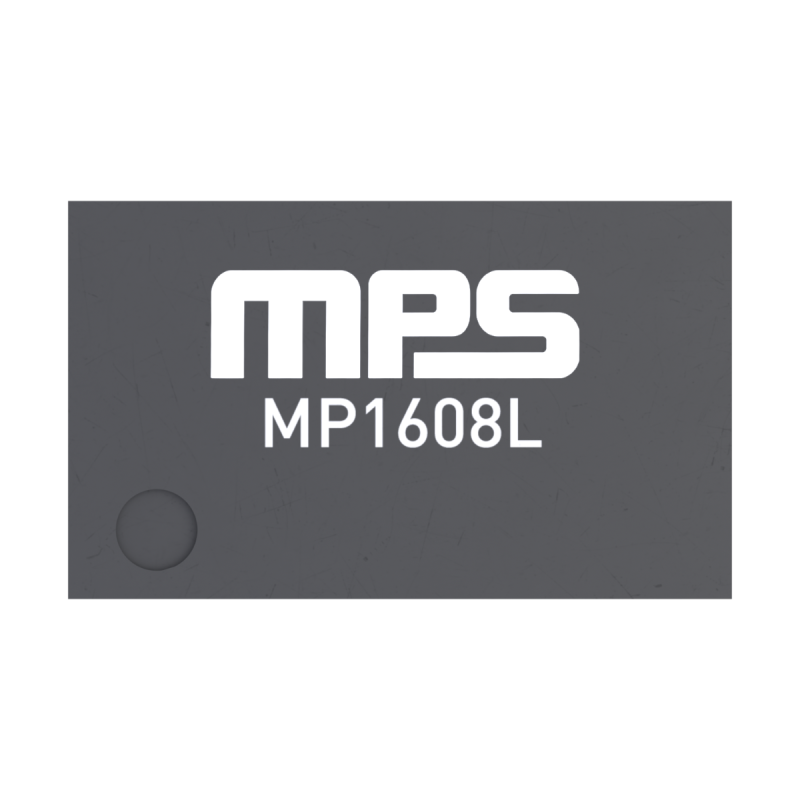

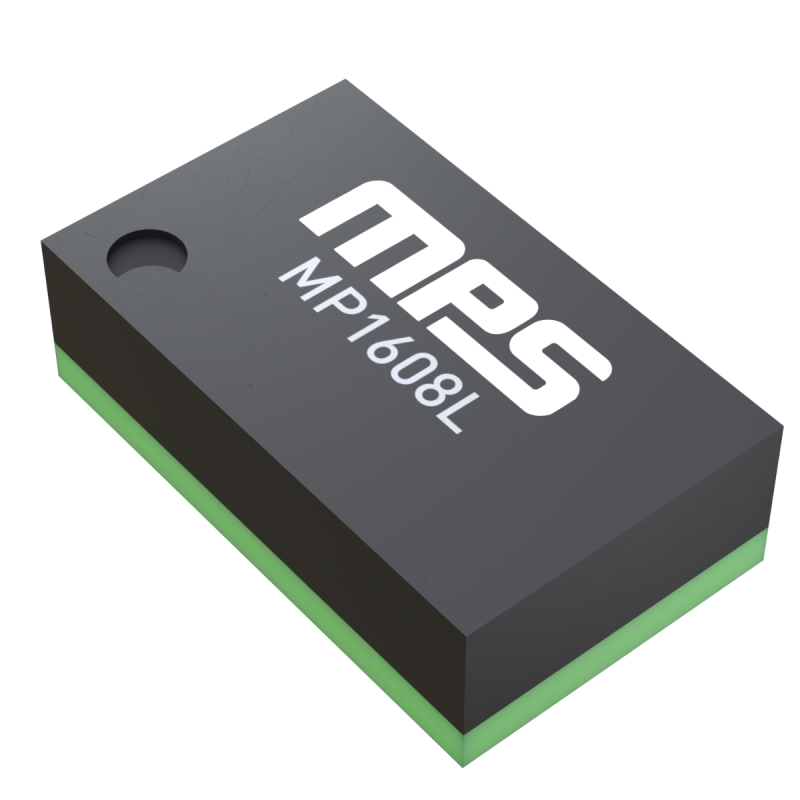

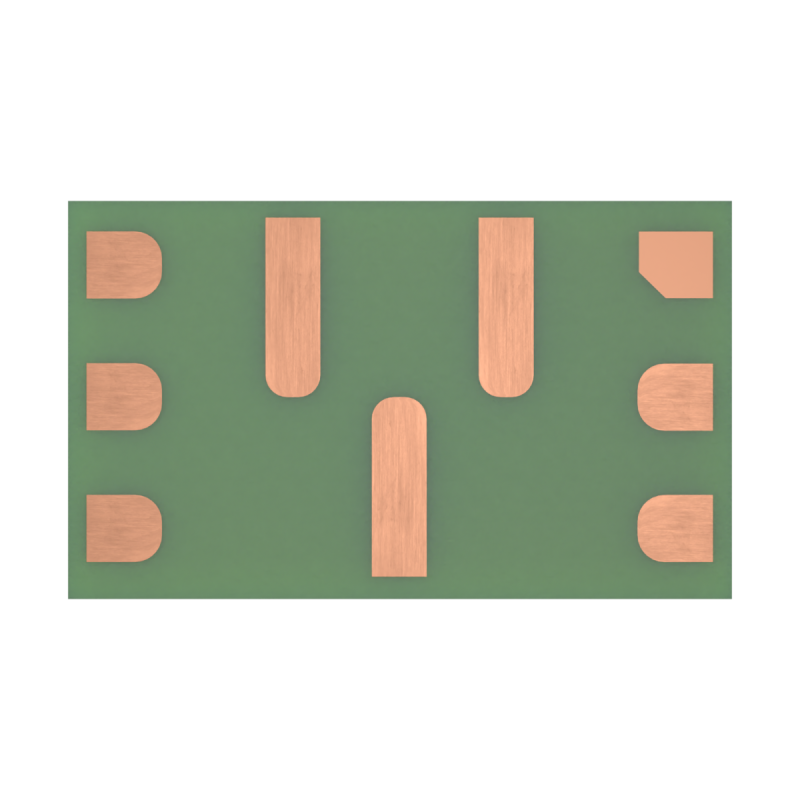

The MP1608L is available in an ultra-small LGA-9 (1.5mmx2.5mm) package, and requires a minimal number of readily available, standard external components.

The MP1608L is ideal for a wide range of applications including high-performance downstream-facing ports (DSPs), wireless power, portable and mobile devices, and other low-power systems.

产品特性和优势

Wide 2.7V to 5.5V Operating Input Voltage (V_IN) Range
Up to 6A of Output Current (I_OUT)
15mΩ and 9mΩ Internal Power MOSFET Switches
Forced Continuous Conduction Mode (FCCM)
1.2MHz Switching Frequency (f_SW)
Output Discharge Function
Short-Circuit Protection (SCP) with Hiccup Mode
Power Good (PG) Indication
Available in a LGA-9 (1.5mmx2.5mm) Package
Optimized Performance with MPS Inductor MPL-AL4020 Series

正在供货产品型号

MP1608LGLHT-Z MP1608LGLHT-P

P&Z的含义

推荐电感

低阻抗塑封电感 0.47µH

低阻抗塑封电感 0.68µH

低阻抗塑封电感 1.0µH

电感选择工具

基于额定数值进行计算
