Identification of Frequent Design Errors

Power converter and control system design is a complicated process that involves careful consideration of a number of factors to guarantee the best possible performance, reliability, and efficiency. Even experienced engineers occasionally encounter common design errors that degrade the final product's quality and functionality. Avoiding expensive changes, production delays, and potential field failures requires early identification and solutions of these common design challenges. Some of the most frequent design errors in power electronics are covered in this section, along with guidance on how to identify and avoid them.

Inadequate Thermal Management

Underestimating Heat Dissipation Needs: In power electronics, underestimating the circuit's thermal management requirements is one of the most common design errors. During operation, power components including MOSFETs, diodes, and inductors generate significant heat. This heat can cause overheating, decreased efficiency, and potentially catastrophic failure if it is not managed. Sometimes, designers overlook including enough heat sinks, thermal vias, or airflow, leading to circuits that are unable to sustain appropriate operating temperatures.

Signs of the Error: Components operating at temperatures beyond their rated maximum, frequent thermal shutdowns, or decreased performance over time as a result of thermal deterioration are all signs of inadequate thermal management. The circuit might not function reliably during testing when it is fully loaded or when the temperature is high.

How to Avoid: Thermal analysis should be a crucial part of the design process in order to avoid this pitfall. This entails performing thorough thermal simulations, selecting components with suitable thermal ratings, and adding efficient cooling solutions including fans, heat sinks, or thermal pads. Furthermore, testing the design in the most extreme thermal conditions can assist in guaranteeing that the thermal management strategy is adequate.

Poor Component Selection

Mismatch Between Component Ratings and Circuit Requirements: Another common error is choosing components that don't satisfy the electrical requirements of the circuit. This includes selecting components with insufficient ratings for voltage, current, or power, which can cause overstressed components, decreased reliability, and even failure. On the other hand, choosing components with ratings that are exceedingly high may lead to inefficiency, overdesign, and needless expense.

Signs of the Error: Under normal operating conditions, the circuit may exhibit symptoms including voltage drops, excessive heat generation, or unexpected failures. In some cases, the circuit could work properly at first but degrades over time as a result of component stress.

How to Avoid: Engineers should carefully examine component datasheets to avoid this issue, taking considering not only the nominal ratings but also derating factors, temperature effects, and the circuit's particular operating conditions. Both electrical and thermal considerations should be taken into account when choosing components, making sure that each one is rated according to its intended use.

Inadequate Power Supply Design

Undersized Power Supply or Insufficient Decoupling: A common error is designing a power supply that is unable to sufficiently meet the load requirements. This may happen as a result of inadequate decoupling, an insufficient power supply, or a design that does not account for transient conditions. Circuit instability, noise, and voltage fluctuations can result from inadequate power supplies.

Signs of the Error: Symptoms include excessive noise on power lines, voltage sags or drops under load, or unstable connected component operation. Particularly during power-up or load conditions changes, the circuit may reset, glitch, or behave erratically.

How to Avoid: A thorough analysis of the load requirements, together with enough margins for peak loads and transient conditions, should be part of any proper power supply design. To guarantee stability and reliability, decoupling capacitors should be placed near the power pins of all important components, and the power supply should be examined under various load conditions.

Inadequate Consideration of EMI and EMC

Ignoring Electromagnetic Interference (EMI) Issues: In power electronics, electromagnetic interference is a major problem, especially in high-frequency circuits and switching power supplies. Excessive noise, interference with other electronic devices, and noncompliance with regulations can result from EMI design errors.

Signs of the Error: Erratic behavior in digital signals, noise in adjacent circuits, or inability to pass EMC compliance testing are all signs of electromagnetic interference (EMI). Additionally, the circuit could produce noise that disrupts other equipment or show sensitivity to external noise sources.

How to Avoid: Designers should adhere to PCB layout best practices, which include limiting loop areas, utilizing appropriate grounding techniques, and implementing shielding where necessary in order to prevent EMI problems. Emissions can also be significantly reduced by using EMI filters, snubber circuits, and proper component placement. Potential issues can be found with early-stage EMC testing before the design is finalized.

Overlooking Parasitic Elements

Failure to Account for Parasitic Inductance and Capacitance: High-speed or high-frequency circuit performance can be significantly impacted by parasitic elements, such as capacitance between components or inductance in traces. Ignoring these parasites may result in instability, signal deterioration, or unexpected resonances.

Signs of the Error: Especially in switching circuits or high-speed signal paths, the circuit may show oscillations, ringing, or overshoot. There may also be issues with signal integrity, such as noise or distortion, and the circuit may be sensitive to small changes in component placement or layout.

How to Avoid: To reduce the effects of parasitics, designers should carefully examine PCB architecture, keeping high-speed traces short and use controlled impedance approaches when needed. Simulation techniques can assist in modeling parasitic elements and predicting their effects on circuit performance. Furthermore, the impacts of parasitic capacitance and inductance can be lessened by employing appropriate decoupling and filtering.

Insufficient Grounding and Power Distribution

Inadequate Grounding and Power Plane Design: Inadequate power distribution or grounding is a common mistake in PCB design that can result in noise, ground loops, and voltage drops. In mixed-signal designs, where analog and digital grounds need to be carefully managed, poor grounding can have an impact on the circuit's overall stability and performance.

Signs of the Error: The circuit may experience instability, sensitivity to external interference, or noise. Unexpected voltage offsets can be caused by ground loops, while voltage drops or fluctuations under load can be caused by inadequate power distribution.

How to Avoid: To preserve signal integrity and reduce noise, a continuous, low-impedance ground plane is essential. To prevent voltage drops, power distribution should be designed with adequate copper width and proper decoupling. To avoid ground loops, separate analog and digital grounds in mixed-signal designs should be connected at a single point.

Over-Complexity in Design

Over-Designing the Circuit: While it is critical to verify that a design fits all requirements, over-designing can result in extra complexity, higher costs, and lower reliability. This involves superfluous redundancy, complex control methods, and the addition of excessive components.

Signs of the Error: The design's high component count and complex routing may make it challenging to manufacture, debug, or maintain. Because there are more components and connections, the circuit can also be more susceptible to failure.

How to Avoid: Simplifying the design, focusing on key functions, and removing extraneous features can increase reliability while lowering costs. Every feature and component should be justified by how it adds to the circuit's overall performance and requirements.

Strategies to Avoid Over-Design and Under-Design

Achieving optimal performance, cost-effectiveness, and reliability in power converter and control system design requires finding the perfect balance between over-design and under-design. When a system is overdesigned, it becomes more robust or complex than is required, which raises expenses and may result in inefficiencies. On the other hand, a system that is underdesigned fails to satisfy the necessary performance standards, resulting in decreased reliability, failures, and the need for expensive redesigns. In order to assist engineers create designs that are balanced, efficient, and reliable, this section explores strategies for avoiding both over- and under-design.

Defining Clear Design Specifications

Understanding the Application Requirements: Clearly defining the design specifications based on the application's actual requirements is the first step in preventing both over- and under-design. This entails comprehending the operational conditions, load requirements, environmental factors, and performance goals. Engineers can make sure the design satisfies the required performance specifications without adding superfluous features or excessive safety margins by carefully examining these requirements.

Avoiding Ambiguity in Specifications: Over-design can result from vague design specifications because engineers may include unnecessary components or functionalities to satisfy undefined requirements. Having precise, well-defined specifications helps in focusing design efforts on what is truly needed, preventing the addition of extraneous or redundant components. Parameters including input/output voltage ranges, current ratings, efficiency goals, thermal limits, and expected operating environments should all be included in comprehensive specifications.

Engaging Stakeholders Early: Involving all key stakeholders, such as customers, project managers, and end users, early in the design process ensures that design specifications are in line with actual requirements. This collaboration ensures that the design satisfies the necessary functionality without adding superfluous features that don't add value, so preventing both over- and under-design.

Applying Design Margin Appropriately

Balanced Design Margins: Design margins are necessary to account for component variations, operating conditions, and manufacturing tolerances. However, whereas inadequate margins lead to under-design, excessive margins can result in over-design. Applying appropriate design margins based on practical worst-case conditions is crucial. For instance, derating transistors and capacitors is necessary to guarantee reliability, but over-derating might unnecessarily increase the design's size and expense. To establish suitable design margins that guarantee performance without resulting in over-design, engineers should employ statistical analysis and reliability modeling.

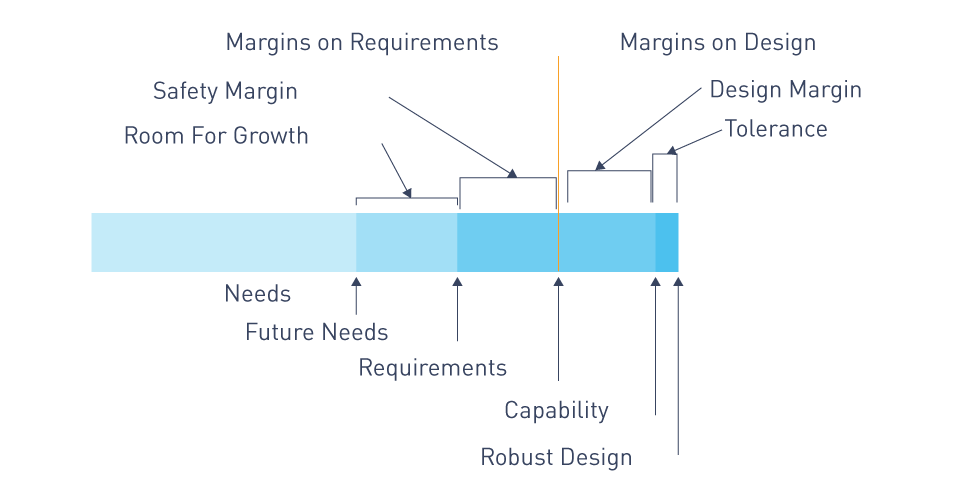

Figure 9: Requirement margin vs. design margin

Simulation and Modeling: Advanced modeling and simulation tools can help maximize design margins by precisely forecasting how the system will behave in different conditions. Engineers can verify that the design functions reliably within the defined margins and prevent the tendency to include excessive safety factors by utilizing these tools. The probability of both over- and under-design is decreased by simulation results, which give assurance that the design will operate as expected in the real world.

Prototyping and Testing: To verify design margins and make sure the design is neither over- nor under-engineered, prototyping and iterative testing are crucial. Prototypes at an early stage can identify potential margin issues and adjust before the final design is finished. Realistic and worst-case testing yields valuable data that can help determine where margins can be lowered or where more robustness may be necessary.

Simplifying the Design

Avoiding Unnecessary Complexity: Engineers should aim for simplicity in design, concentrating on the fundamental functionality required by the application, as complexity in design frequently results in over-design, with additional components, features, and connections that may not be required for the system to fulfill its specifications. Every additional feature or component should be carefully considered to see if it provides value or if it adds needless complication. In general, simpler designs are easier to construct, more reliable, less expensive, and require less maintenance.

Modular Design Approaches: Avoiding over-design and managing complexity can be achieved by using a modular design approach. Engineers can concentrate on optimizing each module separately by breaking the system into different, interchangeable modules. This approach allows flexibility and scalability without unnecessarily complicating the overall system. Clear interfaces in module design facilitate the replacement or upgrade of specific system components without necessitating a total system overhaul.

Reuse of Proven Designs: Reusing proven designs and components from earlier projects can help prevent both over-design and under-design. Utilizing pre-existing, tested designs lowers the risk involved in new development and guarantees that the design satisfies performance requirements without needless additions. Proven designs offer a strong basis for future initiatives since they have already been tested and optimized.

Cost-Benefit Analysis

Economic Evaluation of Design Choices: A cost-benefit analysis is necessary to balance the trade-offs between cost, performance, and reliability. Over-design is frequently caused by an overemphasis on robustness or feature set, without regard for the financial consequences. Engineers can prioritize features and components that offer the most benefits at the lowest cost by weighing the prices of various design options. This method guarantees that the design is both efficient and financially viable.

Focusing on Value-Added Features: In power electronics design, it is critical to prioritize features that directly contribute to system performance and reliability. To avoid over-design, features that don't significantly improve the design should be reconsidered or removed. Advanced monitoring features, for instance, could be useful in some applications but superfluous in others where simple monitoring is adequate. A value-based approach guarantees that resources are directed toward the most important components of the design.

Considering Long-Term Costs: While lowering initial costs is crucial, it is also critical to consider long-term expenditures such as maintenance, reliability, and potential redesigns because of under-design. While under-design can result in higher expenses during the product's lifecycle because of failures, repairs, and customer dissatisfaction, over-design can result in higher initial costs. A balanced approach considers both initial and long-term costs in order to achieve the best possible design that satisfies both performance and economic goals.

Continuous Review and Iteration

Design Reviews and Peer Feedback: Peer review and regular design reviews are essential for detecting potential over-design or under-design issues. Bringing in fresh perspectives can assist in identifying over-engineering, superfluous complexity, or possible under-design hazards that the original design team might not have noticed. In order to make sure that the design satisfies all requirements without going overboard, design reviews ought to be organized to evaluate the design against the given specifications.

Iterative Design Process: Iterative design processes enable continuous optimization and improvement. Engineers can gradually remove over-design elements and rectify any areas of under-design by iteratively improving the design. Lessons from previous iterations should be incorporated into each one, and changes should be made to maximize the balance between cost, performance, and reliability. The end result of this approach is a final design that is more optimized and improved. According to the Law of Diminishing Returns, increasing a production process's resources or effort eventually results in progressively lower output gains. Because it might raise development costs and delay product launches, it is crucial to avoid iterating designs unnecessarily.

Mitigating Electromagnetic Interference (EMI)

When designing power electronics, electromagnetic interference (EMI) is a major consideration, particularly in systems with high power levels and high frequency switching. System instability, decreased performance, and non-compliance with regulations are all consequences of electromagnetic interference (EMI). For electronic systems to operate reliably and to prevent interference with other devices, effective EMI mitigation is crucial. The typical causes of EMI in power electronics, its effects on system performance, and methods for EMI mitigation during the design process are all covered in this section.

EMI Sources in Power Electronics

Switching Noise: The noise produced by the rapid switching of power transistors, such as MOSFETs and IGBTs, is a major source of EMI in power electronics. High-frequency transients and harmonics are generated as these devices switch on and off, and they can propagate throughout the circuit as conducted and radiated electromagnetic interference (EMI). In applications where high-frequency switching is common, such as motor drives and switching power supplies, this switching noise is especially problematic.

Parasitic Elements: Parasitic inductance and capacitance in the circuit layout can increase EMI by causing unwanted resonances and coupling paths for noise. For instance, parasitic capacitance between adjacent traces or layers can result in the undesired coupling of high-frequency noise into sensitive circuits, while parasitic inductance in the traces connecting power devices can generate voltage spikes and ringing.

Ground Loops: Ground loops form when there are multiple ground paths in a circuit, resulting in unwanted current loops that can pick up and emit noise. These loops can function as antennas, sending out electromagnetic interference (EMI) and creating noise in the ground plane, which may interfere with other circuit parts.

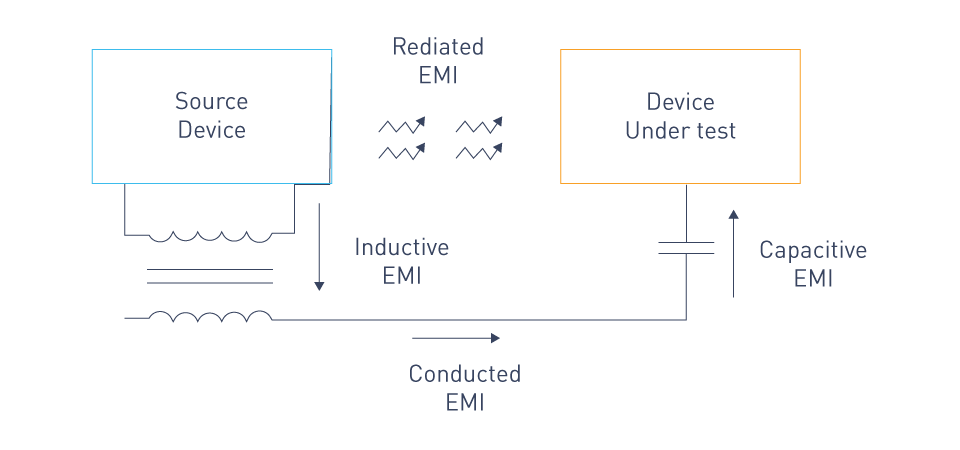

Figure 10: EMI sources

External Sources: Electronic systems can be vulnerable to external electromagnetic interference sources, such as nearby radio frequency transmitters, power lines, or other electronic devices, in addition to internally generated EMI. Through cables, connectors, or inadequately shielded enclosures, this external EMI can couple into the system and cause malfunctions or a decline in performance.

Strategies for Mitigating EMI

PCB Layout Best Practices

Minimizing Loop Areas: One of the best strategies to reduce radiated EMI is to reduce the loop area of high-current paths. Components can be placed closely together, and traces can be routed straight between them to accomplish this. To lessen the magnetic field produced by the switching currents, for instance, the power switch, output inductor, and output capacitor in a switching power supply should form the smallest possible loop.

Optimizing Trace Routing: To reduce EMI, high-frequency signal traces should be carefully routed. Reducing parasitic inductance and capacitance can be achieved by routing traces over solid ground planes, avoiding sharp angles, and keeping them short. Sensitive analog signals should be routed away from noisy digital or power traces, and differential signals should be routed as closely coupled pairs to reduce noise coupling.

Using Ground Planes and Grounding Techniques: For EMI control, a continuous, low-impedance ground plane is necessary. The ground plane minimizes the loop area for high-frequency currents and lowers the possibility of ground loops by giving signals a return path. In multilayer PCBs, a ground plane next to the signal layers can help minimize crosstalk between traces and protect the signals from external noise. Splitting the ground plane should also be avoided because it can lead to unwanted ground loops.

Component Selection and Placement

Selecting Low-EMI Components: Component selection has significant impact on EMI performance. High-frequency noise generation can be decreased by using components with slower switching speeds, such as MOSFETs with controlled rise and fall times. Additionally, filtering can be enhanced and noise propagation can be decreased by choosing capacitors and inductors with low equivalent series resistance (ESR) and equivalent series inductance (ESL).

Strategic Component Placement: Placing components in a way that minimizes noise coupling is critical for EMI mitigation. The length of noisy traces can be decreased by placing high-frequency components next to one another. Decoupling capacitors should be placed as close to the ICs' power pins as possible in order to efficiently filter out high-frequency noise. EMI can also be decreased by protecting delicate components, including analog sensors or amplifiers, from noisy digital or power components.

Filtering Techniques

EMI Filters: EMI filters are intended to reduce high-frequency noise on power and signal lines. Typically, these filters consist of inductors, capacitors, and occasionally resistors arranged in T-, Pi-, or LC-filter configurations. For instance, high-frequency noise can be prevented from the power lines by placing an LC filter at the power supply's input. To optimize their efficiency, EMI filters should be placed near the noise source or where cables exit the PCB.

Decoupling and Bypass Capacitors: On power lines, decoupling capacitors are employed to filter-out high-frequency noise while providing a local charge reservoir. Usually ranging from picofarads to nanofarads, bypass capacitors are positioned close to high-speed switching devices in order to shunt high-frequency noise to ground. These capacitors should be placed as close to IC power pins as feasible to reduce inductance and ensure effective noise suppression.

Shielding and Isolation

Electromagnetic Shielding: To stop electromagnetic interference (EMI) from radiating out or coupling into sensitive areas, shielding entails enclosing noisy components or entire circuits with conductive materials, such as metal enclosures or grounded copper pour areas. To give the noise an outlet to dissipate, shields should be grounded. Metal shields or Faraday cages can be employed in high-frequency designs to protect delicate analog circuits from external electromagnetic interference.

Galvanic Isolation: Galvanic isolation techniques, such as the use of optocouplers, transformers, or isolation amplifiers, can sever the direct electrical connection between circuit components, preventing noise from propagating over shared ground paths. This is especially helpful in applications where ground loops are an issue or if various system components operate at different ground potentials.

Table 4: Galvanic isolation methods

Regulatory Compliance and Testing

Pre-Compliance Testing: Potential EMI issues can be found before the design is finalized by performing pre-compliance testing early in the process. Using tools including spectrum analyzers, near-field probes, and EMI receivers, pre-compliance testing measures the noise produced by the circuit and makes sure it stays within the acceptable limits. Compared to making adjustments after the product has failed regulatory testing, identifying and resolving EMI concerns early on can save time and expense.

Design for Compliance: It is critical to ensure that the design complies with applicable EMI/EMC standards, such as CISPR, FCC, or IEC standards, before launching the product in the market. Designers should understand the precise requirements of these standards and include EMI mitigation measures from the start. This includes using compatible components, according to best practices for PCB layout, and adding filtering and shielding as required.

Continuous Improvement Through Iteration

Prototyping and Iterative Testing: An iterative approach, in which prototypes are built, tested for EMI performance, and improved in response to test results, is frequently necessary for effective EMI mitigation. To bring EMI down to acceptable levels, each iteration must focus on improving the layout, component selection, and filtering techniques. Engineers can gradually remove EMI sources and enhance system performance by iteratively improving the design.

Learning from Failures: Examining the underlying causes of EMI-related issues in prior designs can provide significant insight for future projects. Engineers can improve the EMI performance of subsequent designs and prevent mistakes by documenting lessons learned and implementing best practices into the design process. The key to becoming experts in EMI mitigation in power electronics is constant learning and adaptation.

Case Studies: Lessons Learned from Design Failures

Design failures in the field of power electronics can provide invaluable insights that lead to future designs that are more reliable and efficient. It is possible to significantly improve the design process and steer clear of similar issues in future projects by understanding the underlying causes of these failures, evaluating the effects of design choices, and learning from these experiences. This section includes a number of case studies that illustrate common power electronics design flaws and the lessons learned.

Case Study 1: Thermal Runaway in a Switching Power Supply

A company developed a switching power supply with high efficiency for use in industrial equipment. Components were placed closely together in the design to reduce board size and maximize compactness. The power supply worked adequately under low to moderate loads during initial testing, however it catastrophically failed when exposed to full load conditions for an extended period.

Failure Analysis: The power MOSFETs, which were in charge of switching the supply's high current loads, had overheated and experienced thermal runaway, according to post-failure analysis. Insufficient thermal dissipation was the result of inadequately sized heat sinks and closely placed components. Higher power dissipation, additional heating, and eventual failure resulted from the MOSFETs' on-resistance increasing in tandem with their temperature.

Lessons Learned

Thermal Management is Critical: The significance of thorough temperature management in power electronics was brought to light by this failure. Particularly for components that dissipate significant amounts of power, designers should perform in-depth thermal simulations and include sufficient heat sinks, ventilation, or forced air cooling.

Component Placement Matters: Placing heat-generating components too close together might cause localized hotspots, resulting in thermal problems. Thermal buildup can be avoided by properly spacing components and considering airflow pathways throughout the design process.

Test Under Worst-Case Scenarios: It is critical to test designs under worst-case operating conditions, such as maximum load and temperature extremes, to verify that they can withstand all potential use cases without failing.

Case Study 2: EMI Compliance Failure in a Motor Drive Circuit

A motor drive circuit for electric vehicles (EVs) was developed by an automotive supplier. The design failed the electromagnetic interference (EMI) compliance testing necessary for vehicle certification, but it passed all functional tests and the initial evaluation of the prototype. High levels of conducted and radiated noise were emitted by the motor drive, especially at high switching frequencies.

Failure Analysis: The failure was attributed to PCB layout and component selection. The switching MOSFETs were located far from the gate driver, resulting in long, inductive traces that produced substantial noise during switching. Furthermore, insufficient decoupling capacitors were employed, resulting in noise coupling between the power supply rails. The lack of sufficient filtering on the input and output lines also contributed to the high EMI levels.

Lessons Learned

PCB Layout is Key to EMI Mitigation: To reduce EMI, proper PCB layout is essential. Noise generation can be considerably reduced by reducing trace lengths, particularly for high-frequency signals, and placing components like gate drivers close to the switching devices.

Effective Decoupling and Filtering: To filter out high-frequency noise, adequate decoupling capacitors should be placed close to power pins. The input and output lines can be equipped with EMI filters to assist attenuate noise and prevent it from radiating out of the device.

Early EMC Consideration: EMI mitigation should be considered early in the design phase, rather than as an afterthought. Early-stage EMC testing and design for compliance can help to avoid costly redesigns and certification delays.

Case Study 3: Under-Designed Power Supply in a Consumer Electronics Product

A consumer electronics company introduced a new product featuring a compact, integrated power supply. The design concentrated on lowering size and expense, which resulted in the adoption of components that only met the nominal power needs. Shortly after the product's release, the company received numerous consumer complaints concerning sporadic operation and early failure.

Failure Analysis: The investigation revealed that the power supply was not adequately constructed to meet the actual power requirements of the product. The power transistors were regularly forced into thermal shutdown because of insufficient current handling capacity, and the capacitors in the power supply were operating close to their maximum voltage rating. There was little derating in the design, which left barely any space for modifications to transient loads, environmental conditions, or component tolerances.

Lessons Learned

Adequate Derating is Essential: To guarantee reliable operation under all planned conditions, components should be selected with the proper derating. The risk of failure is increased when components are operated close to their maximum ratings, particularly in consumer products where environmental conditions can vary significantly.

Consider Real-World Operating Conditions: Designers must consider real-world conditions such as transient loads, supply voltage variations, and temperature fluctuations. These factors have the potential to significantly impact the power supply's reliability and performance.

Prototyping and Long-Term Testing: Prototyping in real-world scenarios and long-term reliability testing are critical phases in identifying potential issues before mass manufacturing. This method ensures that the design can endure the rigors of daily use by users.

Case Study 4: Over-Design in a Renewable Energy Inverter

A company that specializes in renewable energy systems developed an inverter for solar energy applications. Advanced features such as high-precision control algorithms, several redundant safety systems, and over-engineered components to guarantee maximum reliability were all included in the design. However, the product's cost was much more than competitors, resulting in low market acceptability.

Failure Analysis: The product's excessive cost was mostly attributable to overdesign. While the inverter was extremely reliable and feature-rich, many of the additional features were unnecessary for the target market. While redundant safety solutions are desirable, they add complexity and cost that the application does not justify. The majority of the applications where the inverter was deployed did not need the use of high-precision components, which improved performance.

Lessons Learned

Align Design with Market Needs: Overdesign can result in higher costs and lower market competitiveness. It is critical to match the design to the actual needs and budget of the target market. Features that do not provide considerable value to the end user should be examined.

Cost-Effectiveness is Key: In competitive markets, cost effectiveness is critical. Designers should prioritize achieving the required performance and reliability without adding extra complexity or expense.

Value-Based Engineering: In value-based engineering, the trade-offs between reliability, performance, and cost are assessed. This method guarantees that the design satisfies the necessary specifications without going overboard, producing a product that is both efficient and commercially viable.
