MPQ2177F-AEC1

MPQ2177F-AEC1

6V, 1A, 2.5MHz, AAM Mode, Synchronous Step-Down Converter with Power Good and Soft Start, AEC-Q100 Qualified

详情

The MPQ2177F-AEC1 is a monolithic, step-down switch-mode converter with built-in internal power MOSFETs. It achieves up to 1A of continuous output current (I_OUT) across a 2.5V to 6V input voltage (V_IN) range, with excellent load and line regulation. The output voltage (V_OUT) can be regulated to as low as 0.6V.

The constant-on-time (COT) control scheme provides fast transient response and eases loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown.

The MPQ2177F-AEC1 is ideal for a wide range of applications, including automotive infotainment systems, clusters, and telematics.

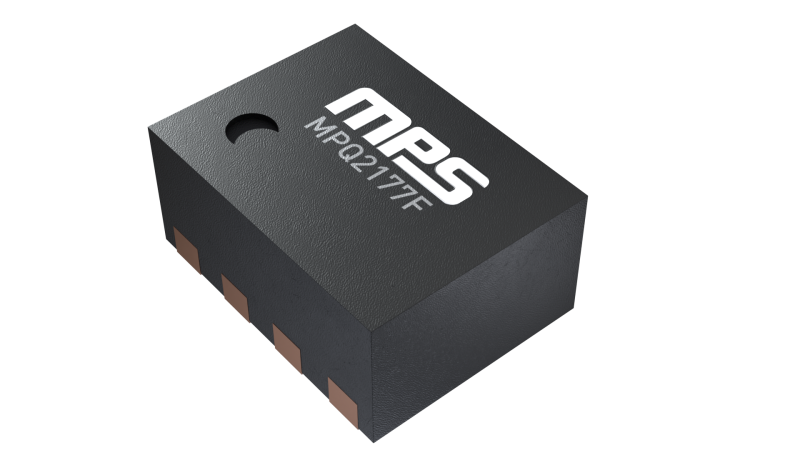

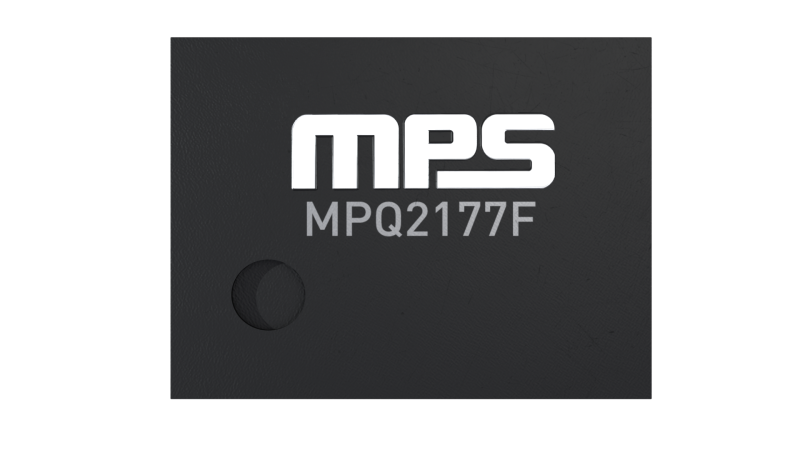

The MPQ2177F-AEC1 requires a minimal number of readily available, standard external components. It is available in an ultra-small QFN-8 (1.5mmx2mm) package, and is AEC-Q100 qualified.

产品特性和优势

Designed for Automotive Applications:
- Wide 2.5V to 6V Operating Input Voltage (V_IN) Range
- Up to 1A of Output Current (I_OUT)
- 1% Feedback (FB) Accuracy
- -40°C to +150° Operating Junction Temperature (T_J)
Improved Battery Life:
- 21μA Sleep-Mode Quiescent Current (I_Q)
- Advanced Asynchronous Modulation (AAM) Mode Increases Efficiency during Light Loads
High Performance for Improved Thermals:
- 60mΩ and 36mΩ Internal Power MOSFETs
Optimized for EMC and EMI Reduction:
- 2.5MHz Switching Frequency (f_SW)
- MeshConnect^TM Flip-Chip Package

Optimized for Board Size and BOM:

Built-In Internal Power MOSFETs
Integrated Compensation Network
Fixed-Output Options: 0.7V, 0.75V, 0.8V, 0.85V, 0.88V, 0.9V, 1.05V, 1V, 1.1V, 1.2V, 1.25V, 1.5V, 1.8V, 2.5V, 2.8V, and 3.3V

Additional Features:

Enable (EN) for Power Sequencing
Power Good (PG)
100% Duty Cycle
External Soft Start (SS) Control
Output Discharge
Output Over-Voltage Protection (OVP)
Short-Circuit Protection (SCP) with Hiccup Mode

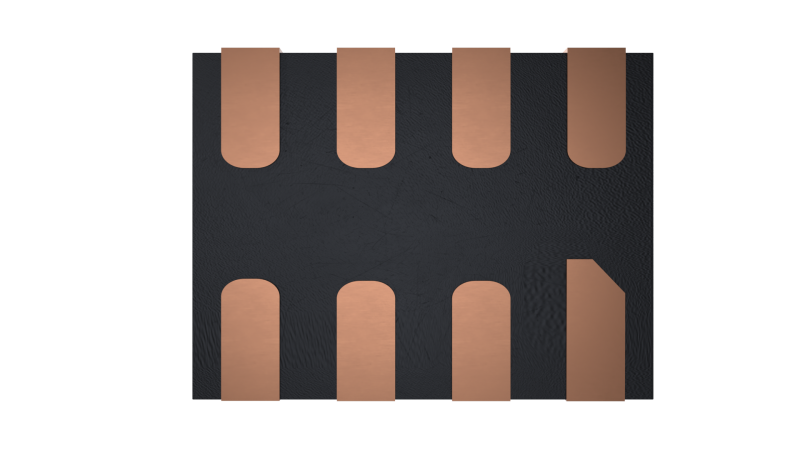

Available in a Compact QFN-8 (1.5mmx2mm) Package with Wettable Flanks
Available in AEC-Q100 Grade 1

Functional Safety System Design Capability:

MPSafe^TM Compatible – Functional Safety Supporting Document Available

正在供货产品型号

MPQ2177FGQHE-AEC1-Z MPQ2177FGQHE-AEC1-P MPQ2177FGQHE-12-AEC1-Z MPQ2177FGQHE-12-AEC1-P MPQ2177FGQHE-18-AEC1-Z MPQ2177FGQHE-18-AEC1-P

P&Z的含义

相关产品

EVQ2177F-QH-00A 1A, 6V, AAM Mode, 2.5MHz, Synchronous Step-Down Converter Evaluation Board, AEC-Q100 Qualified

The EVQ2177F-QH-00A is an evaluation board designed to demonstrate the capabilities of the MPQ2177FGQHE-AEC1, a monolithic, step-down switch-mode converter with built-in internal power MOSFETs.

The MPQ2177F-AEC1 achieves up to 1A of output current (I_OUT) across a 2.5V to 6V input voltage (V_IN) range, with excellent load and line regulation. The output voltage (V_OUT) can be regulated to as low as 0.6V. When V_IN > 3V, a 100% maximum duty cycle can be reached in dropout.

Constant on-time (COT) control offers a simpler control loop and faster transient response. By using V_IN feed-forward, the MPQ2177F-AEC1 maintains a nearly constant switching frequency (f_SW) across the entire input and load ranges.

Advanced asynchronous modulation (AAM) mode provides high efficiency by reducing switching losses at light loads.

An open-drain power good (PG) signal indicates the nominal voltage after the soft-start time (t_SS). PG pulls high once the feedback voltage (V_FB) reaches 95.5% of the reference voltage (V_REF), and is pulled to GND when V_FB drops to 90% of V_REF.

Full protection features include cycle-by-cycle current limiting, short-circuit protection (SCP), over-voltage protection (OVP), and thermal protection with auto-recovery.

The EVQ2177F-QH-00A is a fully assembled and tested evaluation board. The MPQ2177F-AEC1 is available in a QFN-8 (1.5mmx2mm) package, and it is AEC-Q100 qualified.
