MPC22157-130

MPC22157-130

130A, 8mm, Dual-Phase Intelli-Module^TM with Double-Side Cooling Capability

详情

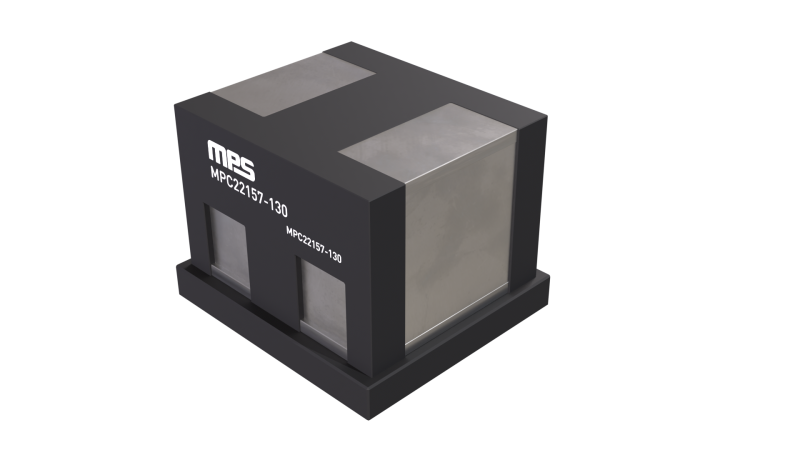

The MPC22157-130 is a dual-phase, non-isolated, high-efficiency step-down power module. It integrates driver MOSFETs (DrMOS) and inductors to provide high efficiency and a small footprint, which is ideal for server applications.

The MPC22157-130 provides two independent outputs that can be used separately or in parallel. It can achieve up to 130A (65A/phase) of output current (I_OUT) across a wide input voltage (V_IN) range.

The MPC22157-130 offers many features to simplify system design. The device works with tri-state pulse-width modulation (PWM) signal controllers. It also provides Accu-Sense^TM current sensing and temperature sensing to monitor the inductor current (I_L) and report the junction temperature (T_J), respectively.

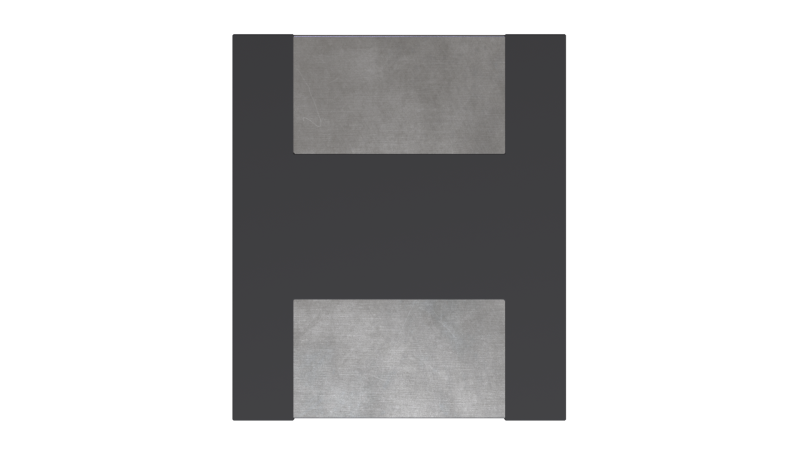

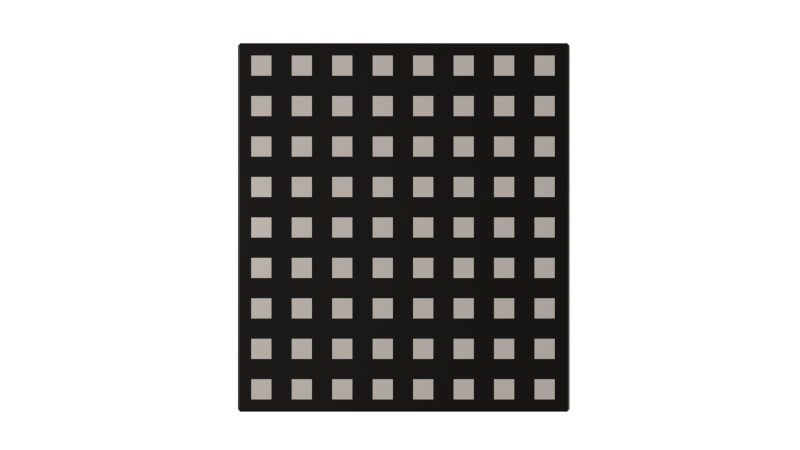

The MPC22157-130 is available in an LGA-72 (9mmx9.9mmx7.7mm) package.

产品特性和优势

Quiet Switcher^TM Technology (QST) Limits Peak Switching Voltages
Wide 4V to 16V Input Voltage (V_IN) Range
Up to 130A of Continuous Output Current (I_OUT)
Accu-Sense^TM Current Sense (CS)
Temperature Sense
Compatible with Tri-State Pulse-Width Modulation (PWM) Signals
Over-Current Protection (OCP)
Over-Temperature Protection (OTP)
Fault Reporting
Typical Weight: 3.4g
Available in an LGA-72 (9mmx9.9mmx7.7mm) Package

正在供货产品型号

MPC22157-130-T

相关产品

EVMPC22157-2891-Split-02A 130A, 8mm, Dual-Phase Intelli-Module^TM Evaluation Board

The EVMPC22157-2891-Split-02A is an evaluation board designed to demonstrate the capabilities of the MPC22157-130, a 130A, dual-phase Intelli-Module^TM with Quiet Switcher^TM technology (QST).

The EVMPC22157-2891-Split-02A can deliver up to 130A of load current across a wide operating input voltage (V_IN) range. High efficiency can be achieved across a wide output current (I_OUT) load range.

The EVMPC22157-2891-Split-02A employs one MP2891 device and two MPC22157-130 devices, which form two power supply rails that can be run independently.

The EVMPC22157-2891-Split-02A can monitor the MPC22157-130’s V_IN, output voltage (V_OUT), I_OUT, and temperature. Full protection features include integrated, configurable V_IN under-voltage lockout (UVLO) protection, as well as V_OUT over-voltage protection (OVP), under-voltage protection (UVP), over-current limit (OCL), and over-current protection (OCP).
